Product Name: Long Weld Ferrules
Item No:3A-14AMP
Size: 1/2"-12";
Standard: 3A
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Surface Treatment: CNC;
Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)
 |
||||||

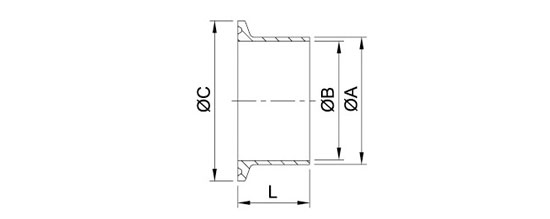

| Tube OD(A) | B | C | L | Part Number | ||
|---|---|---|---|---|---|---|
| inch | mm. | inch | inch | inch | SS304 | SS316L |
| 1/2" | 12.7 | 0.372 |
0.99 | 1.125 | 14AMP-G50 | 14AMP-R50 |
| 3/4" | 19.01 | 0.62 |
0.99 | 1.125 | 14AMP-G75 | 14AMP-R75 |
| 1" | 25.4 | 0.874 |
1.99 | 1.125 | 14AMP-G100 | 14AMP-R100 |
| 1-1/2" | 38.1 | 1.374 |
1.99 | 1.125 | 14AMP-G150 | 14AMP-R150 |
| 2" | 50.8 | 1.874 |
2.52 | 1.125 | 14AMP-G200 | 14AMP-R200 |
| 2-1/2" | 63.5 | 2.374 |
3.05 | 1.125 | 14AMP-G250 | 14AMP-R250 |
| 3" | 76.2 | 2.870 |
3.58 | 1.125 | 14AMP-G300 | 14AMP-R300 |
| 3-1/2" | 88.9 | 3.370 |
4.17 | 1.125 | 14AMP-G350 | 14AMP-R350 |
| 4" | 101.6 | 3.843 |
4.68 | 1.125 | 14AMP-G400 | 14AMP-R400 |
| 4-1/2" | 114.3 | 4.335 |
5.12 | 1.125 | 14AMP-G450 | 14AMP-R450 |
| 5" | 127 | 4.835 |
5.70 | 1.125 | 14AMP-G500 | 14AMP-R500 |
| 6" | 152.4 | 5.78 |
6.57 | 1.125 | 14AMP-G600 | 14AMP-R600 |
| 8" | 203.2 | 7.780 |
8.58 | 1.125 | 14AMP-G800 | 14AMP-R800 |
| 10" | 254 | 9.732 |
10.5 | 1.125 | 14AMP-G1000 | 14AMP-R1000 |
| 12" | 304.8 | 11.73 | 12.5 | 1.125 | 14AMP-G1200 | 14AMP-R1200 |
Notes: • 6"-12" with L 38.1mm(1.50INCH) |
||||||
