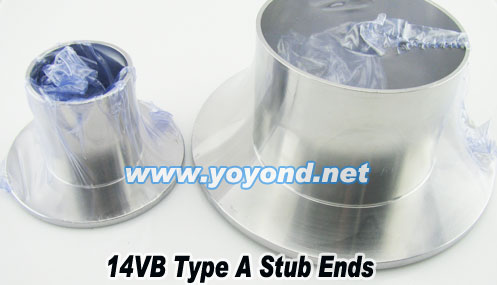

Product Name: 3A-14VB Buttweld Stub Ends

Item No:3A-3A-14VB;   Size: 1 "- 4 " ;   Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

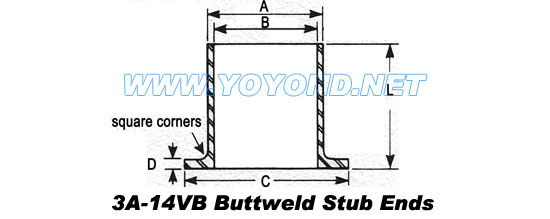

3A-14VB
Size A B C D L Part Number
inch inch inch inch inch inch SS304 SS316L
1" 1.000 0.870 2.000 0.130 1.625 14VB4-100 14VB6-100
1-1/2" 1.500 1.370 2.875 0.130 1.750 14VB4-150 14VB6-150
2" 2.000 1.870 3.625 0.130 1.500 14VB4-200 14VB6-200
2-1/2" 2.500 2.370 4.125 0.130 2.000 14VB4-250 14VB6-250
3" 3.000 2.870 5.000 0.166 2.250 14VB4-300 14VB6-300
4" 4.000 3.834 6.187 0.166 2.625 14VB4-400 14VB6-400
