Product Name:2-PC Screw Ball Valve


FEATURES：

·PIPE THREAD IN ACCORDANCE：NPT，BSPT，

DIN258，DIN2999，ISO228CLASSA

·NOMINAL PRESSURE：1.6~6.4MPA

·TEMPREATURE RANGE：-20℃~232℃~350℃

·SUITABLE MEDIUM：WATER，OIL，AIR AND

SOME CORROSIVE LIQUID

·BLOW-OUT PROOF STEM/FULL PORT

·INVESTMENT CASTING BODY

·1000PSI(PN63)W.O.G

·LOCKING DEVICE

·MATERIAL：

S45C/ASTM A216GR-WCB/DIN1.0619

SS316/ASTM A351GR-CF8M/DIN1.4408

Meterial
ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE

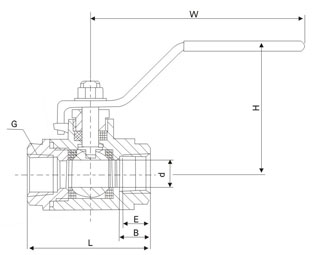

Dimension
1PC Ball Valve
SIZE DN d L H W
1/4” 6 10 55 42 95
3/8” 10 12 55 42 95
1/2” 15 15 62 51 108
3/4” 20 20 75 58 115
1” 25 25 85 77 135
1-1/4” 32 32 102 83 150
1-1/2” 40 38 108 97 175
2” 50 50 124 106 190
2-1/2” 65 65 163 122 220
3” 80 80 185 133 250
4” 100 100 225 162 320
2-PC_Forged_Steel_Ball_Valve

Product Name: 2-PC Forged Steel Ball Valve


FEATURES:

2-PC Body Full Bore

Design and Manufacture: ANSI B16.34

Test and Inspection: API 598

Size: 1/4"-2"

Anti-Static Device

Working Pressure: Class 1500(3000PSI)

Fire-Safety

Thread End: BSP、NPT、DIN2999

ISO 5211 Mounted Pad


Meterial
ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE
Dimension List
2-PC_Forged_Steel_Ball_Valve
SIZE G L H W d
1/4" 18NPT 102 62 170 9
1/2” 18NPT 102 62 170 9
3/4” 14NPT 102 62 170 13
1” 14NPT 110 90 170 19
1-1/4” 11.5NPT 114 90 170 25
1-1/2” / 133 125 280 38
2” 11.5NPT 159 142 300 50
