Product Name: 3-PC Stainless Steel Threaded Ball Valve



FEATURES：

3PC Body

Full Bore

Size:1/4"-4"

Working Pressure:1000PSI

Threaded End :Optiional BSPT\NPT\DIN2999

Female Threaded or Socket Welding End

Optional Locked device Handle

Meterial List
NO Part Name MATERIAL
1 Body CF8M
2 Cap CF8M
3 Seat RPTFE
4 Ball SS316
5 Gasket PTFE
6 Stem seal PTFE
7 Stem SS316
8 Anti-Staic Device SS304
9 Stem Packing PTFE
10 Packing Gland SS304
11 Spring Washer SS304
12 Handle SS304
13 Stem Nut SS304
Dimension List
1PC Ball Valve
SIZE DN d L H W 4-d B1 B2
1/4” 6 11.5 65 46 95 7 12 15
3/8” 10 12 65 46 95 7 14 17.2
1/2” 15 15 75 46 110 8 18 21.3
3/4” 20 20 85 54 110 8.5 25 26.9
1” 25 25 90 64 140 8.5 32 33.7
1-1/4” 32 32 112 69 140 10 38 42.4
1-1/2” 40 38 120 76 155 10 45 48.3
2” 50 50 145 86 180 11 57 60.3
2-1/2” 65 65 170 120 220 16 76 76.1
3” 80 80 200 150 260 18 89 88.9
4” 100 100 263 170 350 20 108 114.3
Bar Stock Ball Valve

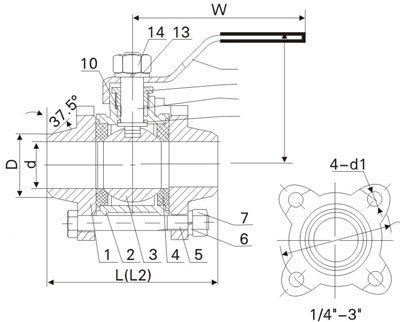

Product Name: 3-PC Butt-Welded Ball Valve



FEATURES：

3PC Body

Full Bore

Size:3/8"-4"

Working Pressure:1000PSI

Working Temperature<150°C(PPL<300°C)

Butt-welding End or Extended Butt-welding End

Optional Locked device Handle

Meterial List
NO Part Name MATERIAL
1 Cap CF8M
2 Body CF8M
3 Ball SS316
4 Seat RPTFE
5 Bolt B8
6 Gasket SS301
7 Stem Nut B8
8 Stem seal PTFE
9 Stem SS316
10 Packing PTFE
11 Packing Gland SS304
12 Handle SS304
13 Spring Washer SS301
14 Stem Nut SS304
Dimension List
1PC Ball Valve
SIZE DN d D L L2 H 4-d1 W
3/8" 10 12 17 65 100 50 7 95
1/2" 15 15 21 75 110 60 8 110
3/4" 20 20 27 85 130 63 8.5 110
1" 25 25 34 90 150 80 8.5 140
1-1/4" 32 32 43 112 160 86 10 140
1-1/2" 40 38 49 120 180 94 10 155
2" 50 50 61 145 200 104 11 180
2-1/2" 65 65 76 170 230 140 16 220
3" 80 80 89 200 260 152 18 260
4" 100 100 106 263 320 170 20 350

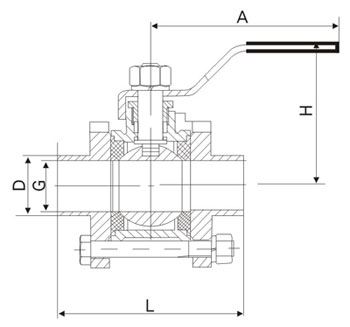

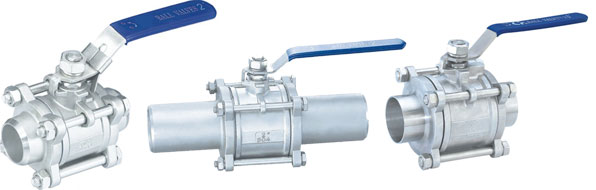

3-PC Sanitary Rate Butt-Welding Ball Valve


Main Outer Size
1PC Ball Valve
SIZE G L D H A
DN6 1/4” 65 12.7 52 105
DN10 3/8” 65 15 52 105
DN15 1/2” 75 19 65 130
DN20 3/4” 85 23 70 130
DN25 1” 95 28 78 150
DN32 1-1/4” 115 35 82 180
DN40 1-1/2” 125 45 92 200
DN50 2” 150 53 98 200
DN65 2-1/2” 175 70 140 240
DN80 3” 210 89 135 265
DN100 4” 260 104 135 300

Specifications
Nominal pressure PN 2.5,4.0,6.4 MPa
Strength testing pressure PT 3.8,6.0,9.6
Set testing pressure   0.6
Seat testing pressure   3.0,4.8,7.6
Applicable media Q61F-25C
Q61F-40C
Q61F-64C		 Q61F-25P
Q61F-40P
Q61F-64P		 Q61F-25R
Q61F-40R
Q61F-64R
Water.Oil.Gas Nitric acid Acetic acid
Applicable temperature -40∼180°C
Main Outer Size
Doscription Q61F-25,40 Q61F-25P,40P Q61F-25R,40R
Valve Body WCB CF8 CF8M
Ball 1Cr18Ni9 1Cr18Ni9 316
Stem 1Cr18Ni9 1Cr18Ni9 316
Sealing Polytetraluoroethlene
Packing
3PC_Socket_Welded_Ball_Valve

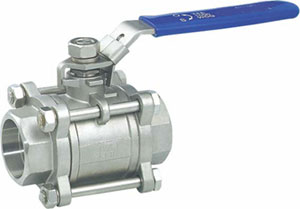

Product Name: 3-PC Socket Welded Ball Valve



FEATURES：

3PC Body

Full Bore

Size:1/4"-4"

Working Pressure:1000PSI

Threaded End :Optiional BSPT\NPT\DIN2999

Female Threaded or Socket Welding End

Optional Locked device Handle


Meterial List
NO Part Name MATERIAL
1 Body CF8M
2 Cap CF8M
3 Seat RPTFE
4 Ball SS316
5 BoltGasket PTFE
6 Stem seal PTFE
7 Stem SS316
8 Anti-Static Device SS304
9 Stem Packing PTFE
10 Packing Gland SS304
11 Spring Washer SS301
12 Handle SS304
13 Stem Nut SS304
Dimension List
1PC Ball Valve
SIZE DN L d H W 4-d B
3/8" 10 65 12 46 95 7 17.55-17.8
1/2" 15 75 15 46 110 8 21.7-21.96
3/4" 20 85 20 54 110 8.5 27.05-27.3
1" 25 90 25 64 140 8.5 33.8-34.05
1-1/4" 32 112 32 69 140 10 42.55-42.80
1-1/2" 40 120 38 76 155 10 48.65-48.9
2" 50 145 50 86 180 11 61.6-61.35
2-1/2" 65 170 65 120 220 16 76.7-77.10
3" 80 200 80 150 260 18 90.15-89.8
4" 100 263 100 170 350 20 115.8-115.45
