Product Name:Three Way Ball Valve


FEATURES：

Structure: L-Port, T-Port

·PIPE THREAD IN ACCORDANCE：NPT，BSPT，

DIN258，DIN2999，ISO228CLASSA

·NOMINAL PRESSURE：1.6~6.4MPA

·TEMPREATURE RANGE：-20℃~232℃~350℃

·SUITABLE MEDIUM：WATER，OIL，AIR AND

SOME CORROSIVE LIQUID

·BLOW-OUT PROOF STEM/FULL PORT

·INVESTMENT CASTING BODY

·1000PSI(PN63)W.O.G

·LOCKING DEVICE

·MATERIAL：

S45C/ASTM A216GR-WCB/DIN1.0619

SS316/ASTM A351GR-CF8M/DIN1.4408

Meterial
NO Part Name Material
1 Body WCB/CF8/CF8M
2 Cap WCB/CF8/CF8M
3 Seat PTFE
4 Ball SS304/SS316
5 Seal Ring PTFE
6 Stem Seal PTFE
7 Stem SS304/SS316
8 Anti-Static Device S.S
9 Stem Packing PTFE
10 Packing Gland S.S
11 Spring Washer S.S
12 Handle S.S
13 Stem Num S.S

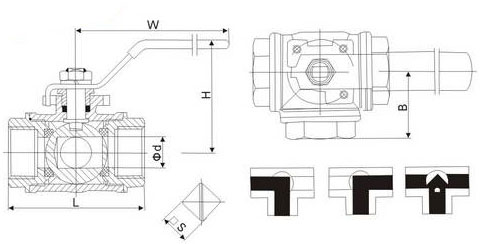

Dimension
1PC Ball Valve
SIZE φd L H W B ISO5211  S
1/4” 4.2 64 32 85 32 F2 (7)
3/8” 6 64 32 95 32 F2 (7)
1/2” 10 68 34 108 34 F3 (9)
3/4” 15 78 60 115 39 F3 (9)
1” 18 86 60 135 43 F4 (9)
1-1/4” 25 111 76 150 55.5 F4 (11)
1-1/2” 32 126 85 175 63 F5 (11)
2” 40 143 95 190 71.5 F5 (11)
2-PC_Forged_Steel_Ball_Valve

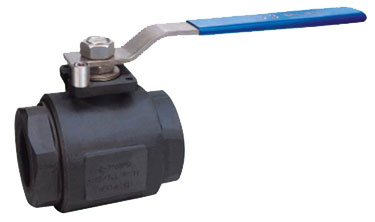

Product Name: 2-PC Forged Steel Ball Valve


FEATURES:

2-PC Body Full Bore

Design and Manufacture: ANSI B16.34

Test and Inspection: API 598

Size: 1/4"-2"

Anti-Static Device

Working Pressure: Class 1500(3000PSI)

Fire-Safety

Thread End: BSP、NPT、DIN2999

ISO 5211 Mounted Pad


Meterial
ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE
Dimension List
2-PC_Forged_Steel_Ball_Valve
SIZE G L H W d
1/4" 18NPT 102 62 170 9
1/2” 18NPT 102 62 170 9
3/4” 14NPT 102 62 170 13
1” 14NPT 110 90 170 19
1-1/4” 11.5NPT 114 90 170 25
1-1/2” / 133 125 280 38
2” 11.5NPT 159 142 300 50
