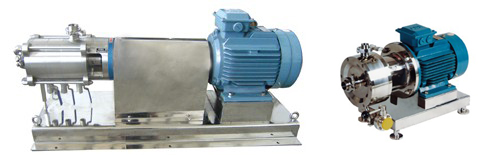

Product Name: TRL Pipeline High Shear Dispersing Emulsifier

High shear dispersing emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other．The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore,the material in the narrow slotamong stator and rotor receives strong force from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction,clashing,tearing and rush water．The dissolvable solid, liquid and gas material then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictive and finally products with stable high quality are made.

Technical Parameters:
Model Power(KW) Rotation speed(RPM) Liquid(m3/h)
TRL1-60 1 2900 0-1.5
TRL1-100 2.2 2900 0-3
TRL1-120 4 2900 0-4
TRL1-140 5.5 2900 0-5
TRL1-165 7.5 2900 0-8
TRL1-180 11 2900 0-12
TRL1-185 15 2900 0-18
TRL1-200 22 2900 0-25
TRL1-210 30 2900 0-35
TRL1-230 45 2900 0-50
TRL1-245 55 2900 0-75
TRL1-260 75 2900 0-90
TRL1-275 90 2900 0-110
TRL1-280 132 2900 0-130

Model Power(KW) Rotation speed(r/min) Liquid(m3/h)
TRL3-60 4 2900 0-4
TRL3-100 7.5 2900 0-8
TRL3-120 11 2900 0-12
TRL3-140 15 2900 0-18
TRL3-165 22 2900 0-22
TRL3-200 37 2900 0-30
TRL3-220 55 2900 0-40
TRL3-240 75 2900 0-55
TRL3-260 90 1470 0-65
TRL3-300 110 1470 0-80
TRL3-360 132 1470 0-100
TRL3-380 160 1470 0-120
TRL3-400 185 1470 0-140

Notes:

Flow range on the table measured when the medium is “water”, the outlet pressure ≤ 0.2Mpa;
If for circulated procedure,intermittent high shear emulsifier is recommended together;
If there is high temperature,high pressure,flammable,explosive or corrosive condition,correct data should be provided by customers in order to choose the right model;
For medium that flows slowly,it is recommended to use a pump in the inlet and suction pressure≤0.2Mpa; The data in the table is subject to change without notice. See the actual products for the right data．

Applications

Fine chemical (pigment,glue,sealing compound,resin emulsifying,germicidal agent,coagulating agent) Petroleum chemical(lubricating grease,diesel emulsifying,asphalt modification,catalyst,paraffin emulsification)
Bio-pharmacy(injection,antibiotic,ointment,biopreparate,capsule emulsification,sugar coating) Coating&oil inks(printing ink,emulsion coating,construction coating,auto paint,coating auxiliary agent) Pesticides (bactericidal agent,seed coating agent,herbicide,pesticide emulsified oil,fertilizer,biological pesticide)
Nanometer material (dispersing and dispolymerizing nanometer material,extracting nanometer products in chemical reaction)
Food industry (juice,jam．jelly,ice cream,dairy products,additive,tea drinking)
Daily Chemicals (detergent,shampoo,cream,lipstick,cleaning facial milk,daily essence)
Paper making (pulp,adhesive,rosin emulsification,paper making additive,resin emulsification)

Advantages

Mass production suitable for continuous production of industrial assembly line
Small diameter range,and highly even
Time saving,high efficient and energy saving
Low noise,stable operation
Reduce quality difference between lots
Material is fully dispersed and sheared
Deliver in short distance with low lift
Easy operation,convenient maintenance
Automatic control

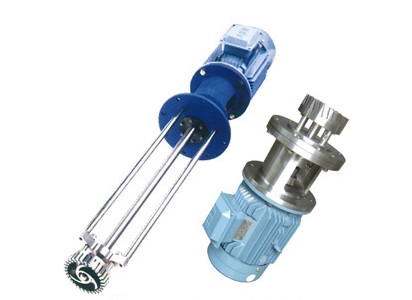

Product Name: TRH Intermittent High Shear Dispersing Emulsifier

High shear dispersing emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other．The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore,the material in the narrow slotamong stator and rotor receives strong force from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction,clashing,tearing and rush water．The dissolvable solid, liquid and gas material then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictive and finally products with stable high quality are made.

TRH Intermittent High Shearing Operation

The rotor revolves in high speed and produces centrifugal force,which sucks the material from upper and lower feeding area axially to the operation chamber．

The strong centrifugal force throws the material axially to the narrow slot between stator and rotor．The material then receives centrifugal press,clash and other forces,which firstly disperse and emulsify the material．

The outer terminal of the rotor revolves in high speed and produces a line speed more than 15 m/s and even up to 40 m/s, which produces strong mechanical and liquid shearing, liquid abrasion, clashing and tearing which fully disperse, emulsify, homogenize, and break the material and jet from the stator slot．

As materials jet in radial in high speed,they change their flow direction with resistance from themselves and vessel walls.The upper and lower axial suction force then leads to strong upper and lower rushing flows.After many circulations,the material is finally dispersed and emulsified evenly.

Technical Parameters

Model Power(KW) Rotation speed(RPM) Handing(m3/h) capacity (L)
TRH190 1.5 2800 5-50
TRH100 2.2 2800 50-100
TRH120 4 2800 100-300
TRH140 7.5 2800 200-800
TRH160 11 2800 300-1000
TRH180 18.5 2800 500-1500
TRH200 22 1400 800-2000
TRH220 30 1400 1000-3000
TRH240 37 1400 1500-5000
TRH270 55 1400 2000-8000
TRH290 75 1400 3000-10000

Note：

The data in the table tested taking water as the medium.If the medium has high viscosity or consistency, suggest use pipeline high shear dispersing emulsifier together.If there is high temperature, high pressure, flammable, explosive or corrosive condition, please offer related correct parameters to choose the right model.The data in the table is subjected to change without notice. See the actual products for the right data.

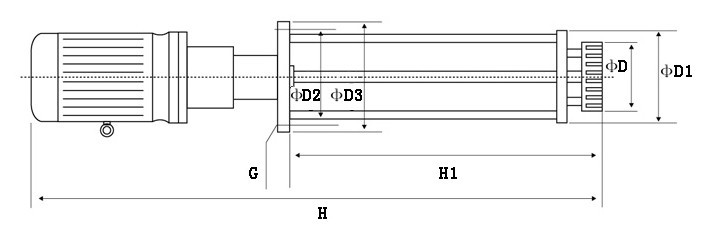

Shape Size

Model D D1 H1 D2 D3 H G
TRH190 105 105 355 200 105 705 8×Φ16
TRH100 116 160 650 215 265 1150 8×Φ16
TRH120 141 195 725 255 290 1300 8×Φ16
TRH140 156 235 850 280 330 1520 8×Φ16
TRH160 184 235 850 280 330 1655 8×Φ20
TRH180 200 280 1200 360 415 2070 8×Φ20
TRH200 240 300 1200 360 415 2130 8×Φ20
TRH220 260 320 1355 400 450 2525 8×Φ20
TRH240 280 240 1395 400 450 2585 8×Φ20
TRH270 330 280 1650 500 550 2995 8×Φ20
TRH290 350 400 1660 500 550 3050 8×Φ20
