WENZHOU YOYOND LIQUID EQUIPMENT CO.,LTD

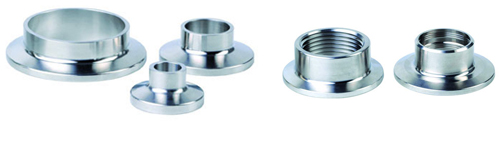

Product Name:3A,DIN,ISO Weld Ferrule Adapter/Expanding Ferrule

Size: 1/2"-12";

Connection: Clamped - Welded; Expanded-Clamped

Material: ASTM304, 316, 316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: CNC Machined;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Related Products: 14WMP,14MMP,14AMP,14MPW,16AMP,14WI,15WI,23BMP,B19W,22MP,21MP,14MPHR

Date Download:Sanitary Ferrule(0.783MB)

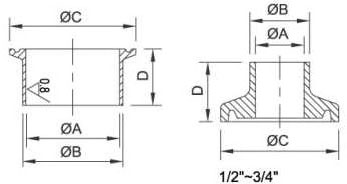

3A-14WMP,14MMP,14AMP Butt Weld Ferrule

Size	A	B	C	D(14WMP)	D(14MMP)	D(14AMP)
1/2″	9.45	12.75	25.2	12.7	21.5	28.6
3/4″	15.75	19.05	25.2	12.7	21.5	28.6
1.0″	22.2	25.4	50.5	12.7	21.5	28.6
1.5″	34.9	38.1	50.5	12.7	21.5	28.6
2.0″	47.6	50.8	64.0	12.7	21.5	28.6
2.5″	60.3	63.5	77.5	12.7	21.5	28.6
3.0″	73.0	76.2	91.0	12.7	21.5	28.6
4.0″	97.6	101.6	119.0	15.8	21.5	28.6
6.0″	146.8	152.5	166.8		21.5	28.6 or 38.1
8.0″	197.6	203.3	217.7		21.5	28.6 or 38.1
10″	247.2	254.1	268.5		21.5	28.6 or 38.1
12″	298	304.9	319.3		21.5	28.6 or 38.1

3A-14MPW Tank Welded Ferrule

Size	A	B	C	D	L
1.0"	22.1	29.5	43.5	50.5	20
1.5"	34.8	42.6	43.5	50.5	20
2.0"	47.5	55.7	56.5	64.0	20
2.5"	60.2	68.8	70.5	77.5	20
3.0"	72.9	81.9	83.5	91.0	20
4.0"	97.4	108.1	110.0	119	20

3A-14RMP Expanded Ferrule - Recessless3A-14RMP Expanded Ferrule - Recessless

Size	A	B	D
1"	19.1	50.5	29.5
1 1/2"	28.6	50.5	42.6
2"	33.3	64.0	55.7
2 1/2"	34.9	77.5	68.8
3"	36.5	91.0	81.9
4"	38.1	119.0	108.2

14WI I-LINE Short Male Ferrule

Size	A	B	C	D	E
1.0"	25.65	22.10	31.50	50.67	19.84
1.5"	38.35	34.80	44.20	50.67	23.80
2.0"	51.05	47.50	56.90	67.05	26.19
2.5"	63.75	60.20	69.60	84.00	29.36
3.0"	76.45	72.89	83.82	98.30	30.94
4.0"	101.85	97.38	109.14	123.70	43.11

15WI I-LINE Short Female Ferrule

Size	A	B	C	D	E
1.0"	25.65	22.10	31.88	50.67	19.84
1.5"	38.35	34.80	44.58	50.67	23.80
2.0"	51.05	47.50	57.28	67.05	26.19
2.5"	63.75	60.20	69.98	84.00	29.36
3.0"	76.45	72.89	84.20	98.30	30.94
4.0"	101.85	97.38	109.60	123.70	43.11

16AI - 14I Solid End Cap Male

SIZE	A	B	C
1.0"	31.50	50.67	9.7
1.5"	44.20	50.67	9.7
2.0"	56.90	67.05	11.77
2.5"	69.60	84.00	15.52
3.0"	83.82	98.30	16.12
4.0"	109.14	123.70	16.12

16AI - 15I Solid End Cap Female

SIZE	A	B	C
1.0"	31.88	50.67	12.75
1.5"	44.58	50.67	12.75
2.0"	57.28	67.05	17.66
2.5"	69.98	84.00	18.77
3.0"	84.20	98.30	19.37
4.0"	109.60	123.70	19.37

3A-16AMP Solid End Cap

SIZE	A	B
A37	34	6.3
1/2"-3/4”	25.2	5
1”-1.5”	50.5	6.3
2.0”	64.0	6.3
2.5”	77.5	6.3
3.0”	91.0	6.3
4.0''	119.0	7.9
6.0"	166.8	11.1
8,0"	217.7	11.1
10"	268.5	11.1
12"	319.3	11.1
